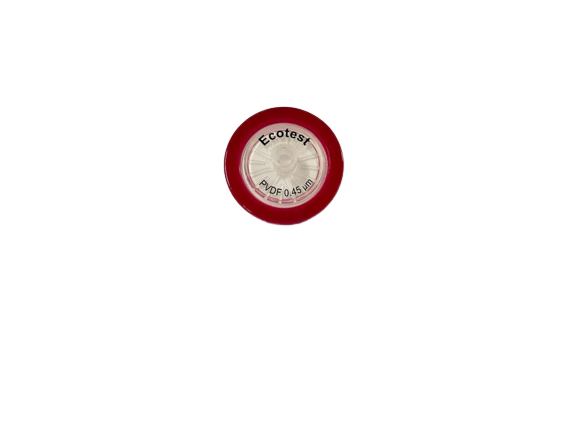

Code : PVDF 25mm x 0.45

Ecotest PVDF 0.45 µm

Product Details Diameter : 25 mm Porosity (µm) : 0.45 Membrane material : PVDF Wettability : Hydrophobic Hold-Up Volume(µL): <100 Housing material : Polypropylene Bubble Point (psi) : 11.6 - 14.5 Bubble point and flow rate were tested by ethyl alcohol Pore size : 0.45µm Filtration area(cm2) : 2.98 Burst Pressure (psi) 87.0 Flow rate (ml/min @10psi) : 68-97
Code : NYLON 25mm x 0.45

Ecotest NYLON 0.45 µm

Product Details   Diameter : 25 mm Porosity (µm) : 0.45 Membrane material : NYLON Wettability : Hydrophilic Hold-Up Volume(µL): <100 Housing material : Polypropylene Bubble Point (psi) : 34.8 - 39.2 Bubble point and flow rate were tested by Water at 25°C Pore size : 0.45µm Filtration area(cm2) : 2.98 Burst Pressure (psi) 87.0 Flow rate (ml/min @10psi) : 35-46
Code : PTFE 25mm x 0.45

Ecotest PTFE 0.45 µm

Product Details Diameter : 25 mm Porosity (µm) : 0.45 Membrane material : PTFE Wettability : Hydrophobic Hold-Up Volume(µL): <100 Housing material : Polypropylene Bubble Point (psi) : 10.2 - 11.6 Bubble point and flow rate were tested by ethyl alcohol Pore size : 0.45µm Filtration area(cm2) : 2.98 Burst Pressure (psi) 87.0 Flow rate (ml/min @10psi) : 142 - 153
Code : PES 25mm x 0.45

Ecotest PES 0.45 µm

Product Details Diameter : 25 mm Porosity (µm) : 0.45 Membrane material : PTFE Wettability : Hydrophobic Hold-Up Volume(µL): <100 Housing material : Polypropylene Bubble Point (psi) : 10.2 - 11.6 Bubble point and flow rate were tested by ethyl alcohol Pore size : 0.45µm Filtration area(cm2) : 2.98 Burst Pressure (psi) 87.0 Flow rate (ml/min @10psi) : 142 - 153
Code : PTFE 13mm x 0.45

Ecotest PTFE 0.45 µm

Product Details Diameter : 13 mm Porosity (µm) : 0.45 Membrane material : PTFE Wettability : Hydrophobic Hold-Up Volume(µL): <10 Housing material : Polypropylene Bubble Point (psi) : 13.1 - 16.0 Bubble point and Flow rate were tested by ethyl alcohol Pore size : 0.45µm Filtration area(cm2) : 0.92 Burst Pressure (psi) 87.0 Flow rate (ml/min @10psi) : 32 - 39

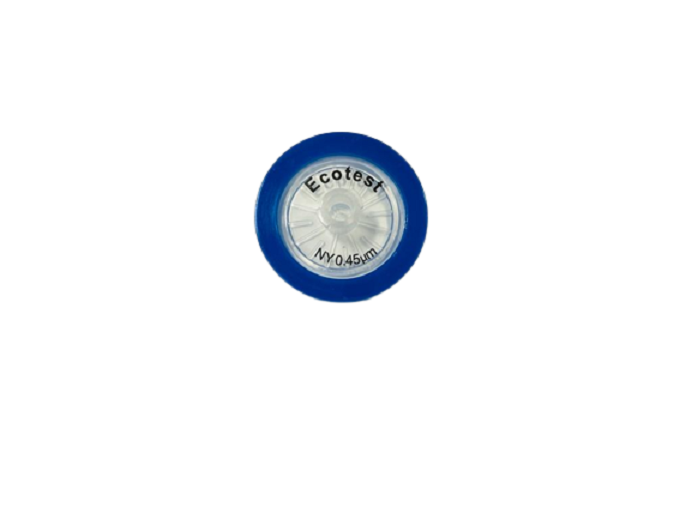

Code : NYLON 13mm x 0.45

Ecotest NYLON 0.45 µm

Product Details Diameter : 13 mm Porosity (µm) : 0.45 Membrane material : NYLON Wettability : Hydrophilic Hold-Up Volume(µL): <10 Housing material : Polypropylene Bubble Point (psi) : 39.2 - 43.5 Bubble point and Flow rate were tested by water Pore size : 0.45µm Filtration area(cm2) : 0.92 Burst Pressure (psi) 87.0 Flow rate (ml/min @10psi) : 15 - 23
