Code : PX223

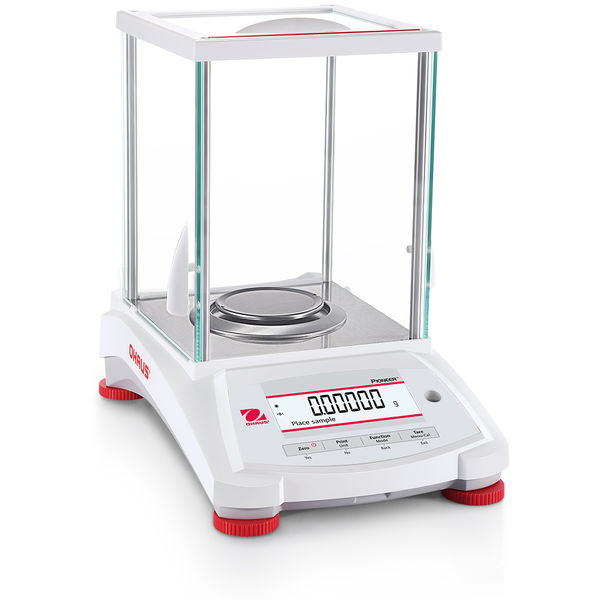

PX223

The Pioneer PX combines essential weighing functionality with competitive performance, offering high accuracy and repeatability for applications in laboratory, industrial and education settings. The PX is affordably priced, and intuitively designed for intelligent operation with a second line display for additional information, and USB and RS232 connectivity for easy communication.   SPECIFICATIONS Maximum Capacity 220 g Readability 0.001 g Pan Size 120 mm Internal Calibration InCal™ - Semi Automatic Draftshield Included Auxiliary Display Model Available as an Accessory Battery Life Not applicable Communication USB;  RS232 Dimensions 321 mm x 309 mm x 209 mm (LxHxW) Display 2-Line LCD with Backlight In-Use Cover Included Legal for Trade No Linearity ± 0.002 g Minimum Weight (USP, 0.1%, typical) 2 g Minimum Weight 0.82 g Net Weight 10 lb (4.5 kg) Pan Construction Stainless Steel Power AC Adapter (Included) Repeatability, typical 0.001 g Stabilization Time 2 s Tare Range To capacity by subtraction Units of Measurement Singapore Tael;  Pennyweight;  Ounce Troy;  Kilogram;  Grain;  Tical;  Custom;  Milligram;  Newton;  Momme;  Taiwan Tael;  Baht;  Gram;  Hong Kong Tael;  Pound;  Tola;  Mesghal;  Ounce;  Carat Working Environment operability guaranteed between 41°F and 104°F;  50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;  10°C – 30°C, 80%RH, non-condensing)
Code : MB120

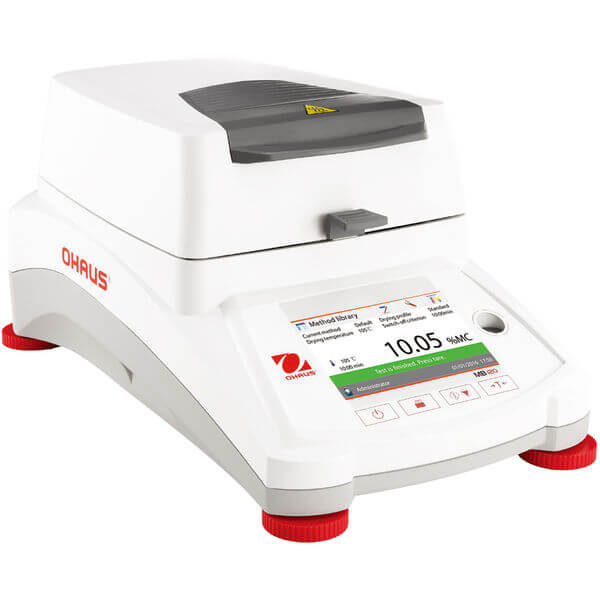

MB120 Moisture Analyzer

Moisture affects everything we use on a daily basis. Therefore, in many cases it is important to be able to accurately determine the moisture content of samples. Equipped to handle routine and sophisticated measurements, our flagship moisture analyzer MB120 makes the whole process faster, easier, and more efficient. The MB120 allows you to analyze more samples, access saved data, and spend less time prepping and more time putting your results to work.   SPECIFICATIONS Maximum Capacity 120 g Readability Moisture Content 1 mg/0.01% Pan Size 3.5 in (90 mm) Heater Type Halogen Lamp Communication USB device;  USB host x 2;  RS232 Dimensions 13.98 in x 7.09 in x 8.31 in (355 mm x 180 mm x 211 mm) (LxHxW) Display Full-Color 4.3 in Touchscreen WQVGA Heating Profiles Ramp;  Standard;  Step;  Fast In-Use Cover Included Moisture Range 0 % ;  100 % Net Weight 11.53 lb (5.23 kg) Operating Range (Temp.) 10 °C ;  40 °C Power 115 v, 60 Hz Sample Size 0.5 g ;  120 g Shut-Off Criteria Timed;  Manual;  Custom - User Set Weight Loss/Time;  Custom - User Set Moisture% Loss/Time;  Automatic - Preset Weight Loss/Time Temperature Range 40 °C ;  230 °C Test Library 100 Units of Measurement %DC;  Gram;  %RG;  %MC Working Environment 50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
  • Download
Code : MB90

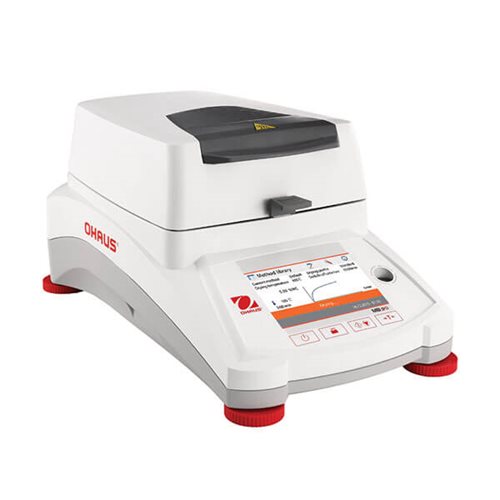

MB90 Moisture Analyzer

MB902 Halogen heating increases efficiency for faster results. Intuitive touchscreen menu offers step-by-step guidance for any application. Tool-free cleaning for easy maintenance.   Applications Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing Display 4.3" TFT color touchscreen display Operation Power cord (included) Communication RS232 with GLP/GMP data output, USB Host and USB Device (included) Construction Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover Design Features Three shut-off criteria (manual, timed or auto), two drying profiles (standard and fast), storage up to two methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 14 operational languages
  • Download
Code : MB27

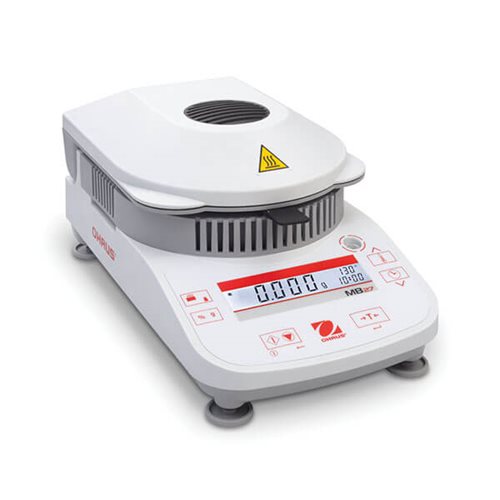

MB27 Moisture Analyzer

MB27 With 0.01% 0.001g accuracy, the MB27 Moisture Analyzer is suitable for most applications. Halogen heating and dual weight-temperature calibration provide fast, reliable results. User-friendly touch-button design for easy operation.   Applications Percent Moisture Determination, Percent Solid Determination, Weighing Display Backlit liquid crystal display (LCD) Operation Power cord (included) Communication RS232 (included) Construction Halogen heat source, ABS housing, metal pan support, metal pan handler, in-use cover Design Features 3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
  • Download
Code : MB25

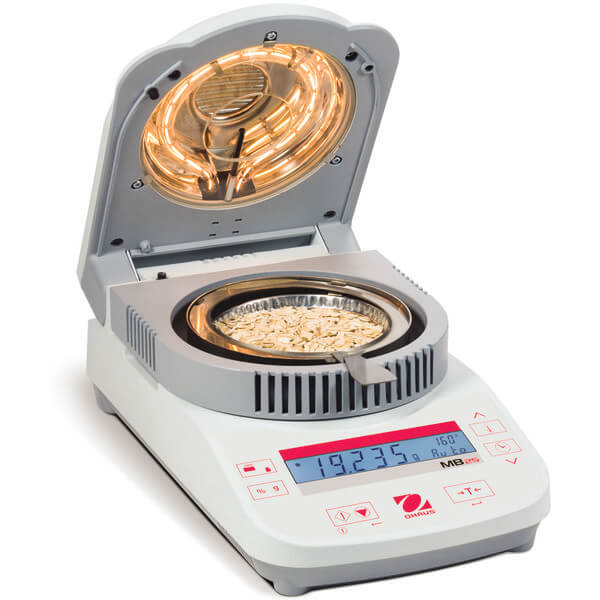

MB25 Moisture Analyzer

The MB25 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.005g/0.05% and halogen heating, the MB25 offers moisture analysis for any budget.   SPECIFICATIONS Maximum Capacity 110 g Readability Moisture Content 5 mg/0.05% Pan Size 3.5 in (90 mm) Heater Type Halogen Lamp Communication RS232 (Included) Dimensions 11 in x 5 in x 6.5 in (280 mm x 127 mm x 165 mm) (LxHxW) Display Backlit LCD In-Use Cover Included Net Weight 5 lb (2.1 kg) Power AC Power (Included) Shut-Off Criteria Timed;  Manual;  Automatic - Preset Weight Loss/Time Temperature Range 50 °C ;  160 °C Units of Measurement Gram Working Environment 50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)
  • Download
Code : SCOUT™ SPX

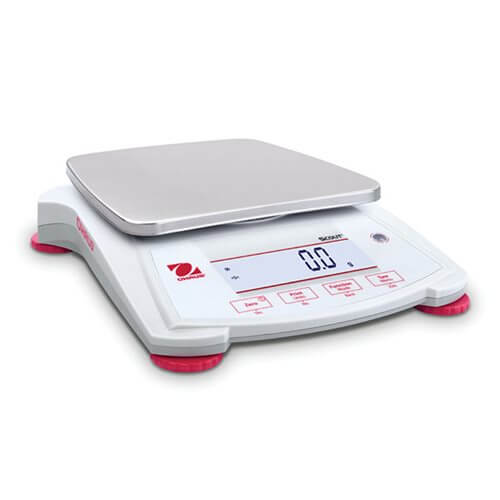

SCOUT™ SPX PORTABLE BALANCES

SCOUT™ SPX PORTABLE BALANCES Large backlit display improves readability in low light conditions and is easier to view from a distance. Integrated overload protection and impact-resistant pan allow the balance to operate efficiently in demanding environments. Increase productivity with advanced weighing technology and stabilization time as fast as one-second.   Applications Weighing, Parts Counting, Percent Weighing, Check Weighing, Totalization, Display Hold Display Liquid crystal display (LCD) with backlight Operation AC Adapter (Included) or 4 AA Batteries (Not included) Communication RS232, USB Host, USB Device, Ethernet or Bluetooth™ (available as an accessory) Construction ABS housing, stainless steel pan, ABS draftshield (1mg models only), weigh below hook, transportation lock, manual calibration lock switch, security slot, adjustable leveling feet, illuminated up-front level indicator Design Features Stability indicator, stackable design with optional storage cover (excluding 1mg models), mechanical and software overload/underload protection, low battery indicator, auto shut-off, auto tare, span calibration mass included on models up to 620g capacity
  • Download
Code : NAVIGATOR™

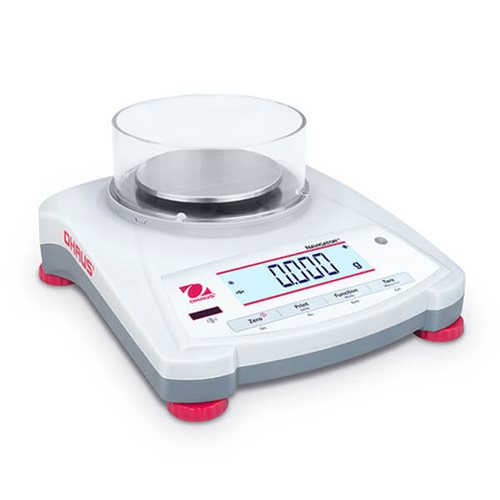

NAVIGATOR™ PORTABLE BALANCES

NAVIGATOR™ PORTABLE BALANCES Navigator offers essential weighing applications at a competitive price point. Advanced weighing technology offers one-second stabilization for fast and accurate weighing results, improving operator efficiency, productivity and throughput. Overload protection system that can withstand loads up to four times the rated capacity safeguards the balance.   Applications Weighing, Parts Counting, Percent Weighing, Checkweighing Display Liquid Crystal Display (LCD) with backlight Operation AC adapter (included) or 4 C batteries (not included) Communication RS232, USB, or Ethernet (available as accessories) Construction ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble Design Features Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings
  • Download
Code : MB95

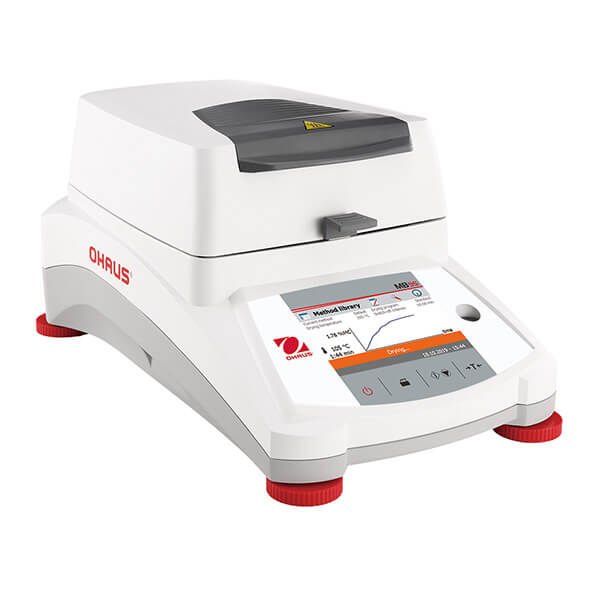

MB95 MOISTURE ANALYZER

MB95’s precisely controlled halogen heating dries samples quickly and ensures uniform heating to yield fast. Four drying profiles and five switch-off criteria help to perform customized sample tests. MB95 can help you store up to 20 methods and 200 total results, for statistical analysis of measurements. Designed with effortless maintenance in mind, the MB95 features a removable pan handler and heating chamber components that make cleaning quick and easy—no tools needed.   Applications Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing Display 4.3" TFT color touchscreen display Operation Power cord (included) Communication RS232 with GLP/GMP data output, USB Host and USB Device (included) Construction Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover Design Features Five Switch-off criteria (Manual, Timed, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 20 methods and 200 test results for all methods, user guide, 40°C to 200°C heating temperature range (1°C increments), 14 operational languages
  • Download
