Discription:

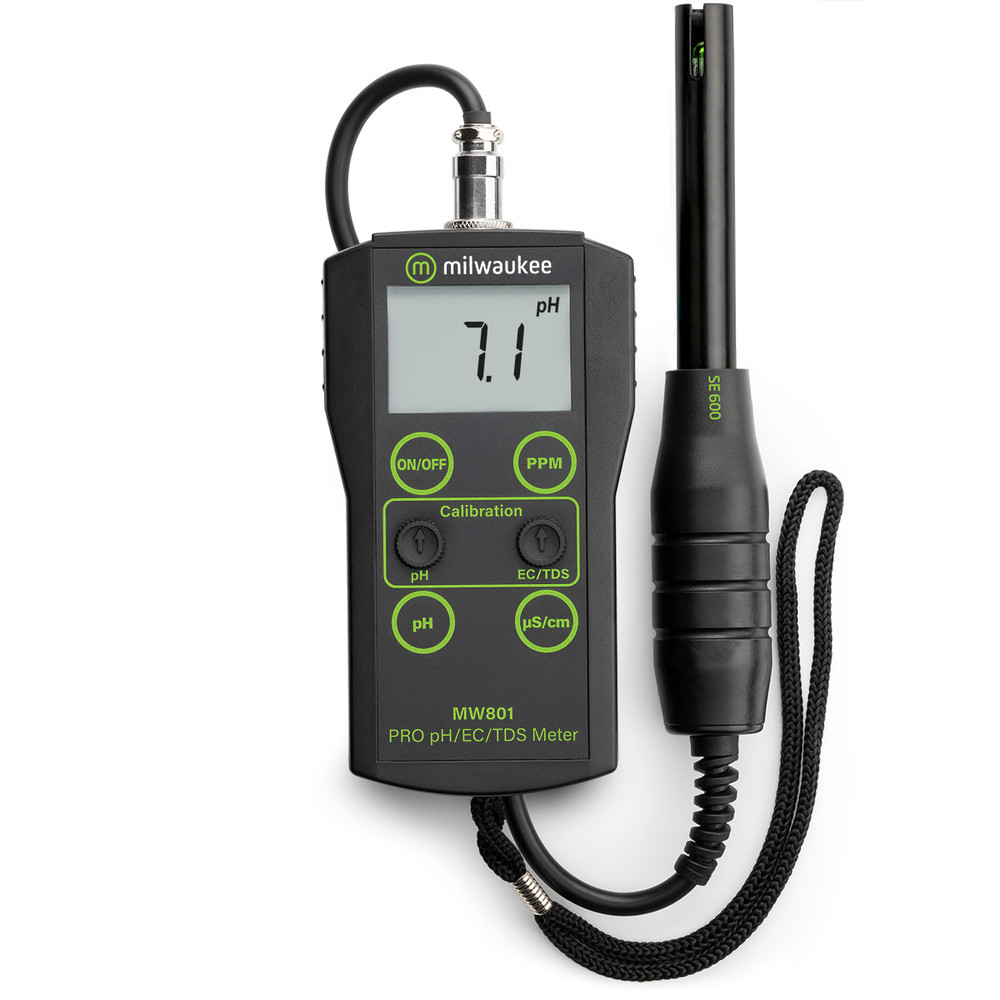

3 meters in 1! This meter allows you to measure pH, EC (conductivity) and TDS with just one instrument and one single probe!
The MW801 with a Conductivity range that goes up to 1990 µS/cm and TDS range that goes up to 1990 ppm is an ideal tool for drinking water measurements.
Supplied with the SE600 interchangeable probe to measure pH, Conductivity and TDS. The pH electrode utilizes a fiber junction to reduce contamination when measuring fertilizer solutions. Both meters calibrate manually in pH, Conductivity and TDS.
SPECIFICATIONS |
|
pH Range |
0.0 to 14.0 pH |
EC Range |
0 to 1990 µS/cm |
TDS Range |
0 to 1990 ppm |
pH Resolution |
0.1 pH |
EC Resolution |
10 µS/cm |
TDS Resolution |
10 ppm |
pH Accuracy |
±0.2 pH |
EC/TDS Accuracy |
±2% Full Scale |
Calibration Solutions |
M10007 (pH 7.01) |
Conversion Factor |
0.5 |
Calibration |
manual, at 1 point |
Temperature Compensation |
automatic, from 0 to 50°C |
Probe |
SE600 combination pH/EC/TDS probe |
Environment |
0 to 50°C / 32 to 122°F; max RH 95% |
Battery Type / Battery Lyfe |
1 x 9V alkaline / 150 hours of use |
Auto-off |
after 8 minutes of non-use |
Dimensions |
185 x 82 x 45 mm |
Weight |
165 g (with battery) |
ACCESSORIES |
|
M10004B |
pH 4.01 buffer solution 20 ml |
M10007B |
pH 7.01 buffer solution 20 ml |
M10010B |
pH 10.01 buffer solution 20 ml |
M10031B |
1413 µS/cm calibration solution, |
M10032B |
1382 ppm calibration solution, |
M10442B |
1500 ppm calibration solution, |
MA9015 |
Electrode storage solution, 230 ml bottle |
SE600 |
pH/EC/TDS spare probe with 1 m cable |
MA6370 |
Protective hard shell case |
ORDERING INFORMATION |
|
MW801 is supplied complete with SE600 combination pH/EC/TDS probe, 20 mL sachet pH 7.01 buffer solution, 20 mL 1413 µS/cm sachet of calibration solution, 20 mL 1382 ppm sachet of calibration solution, 9V battery and instructions. |
Discription:

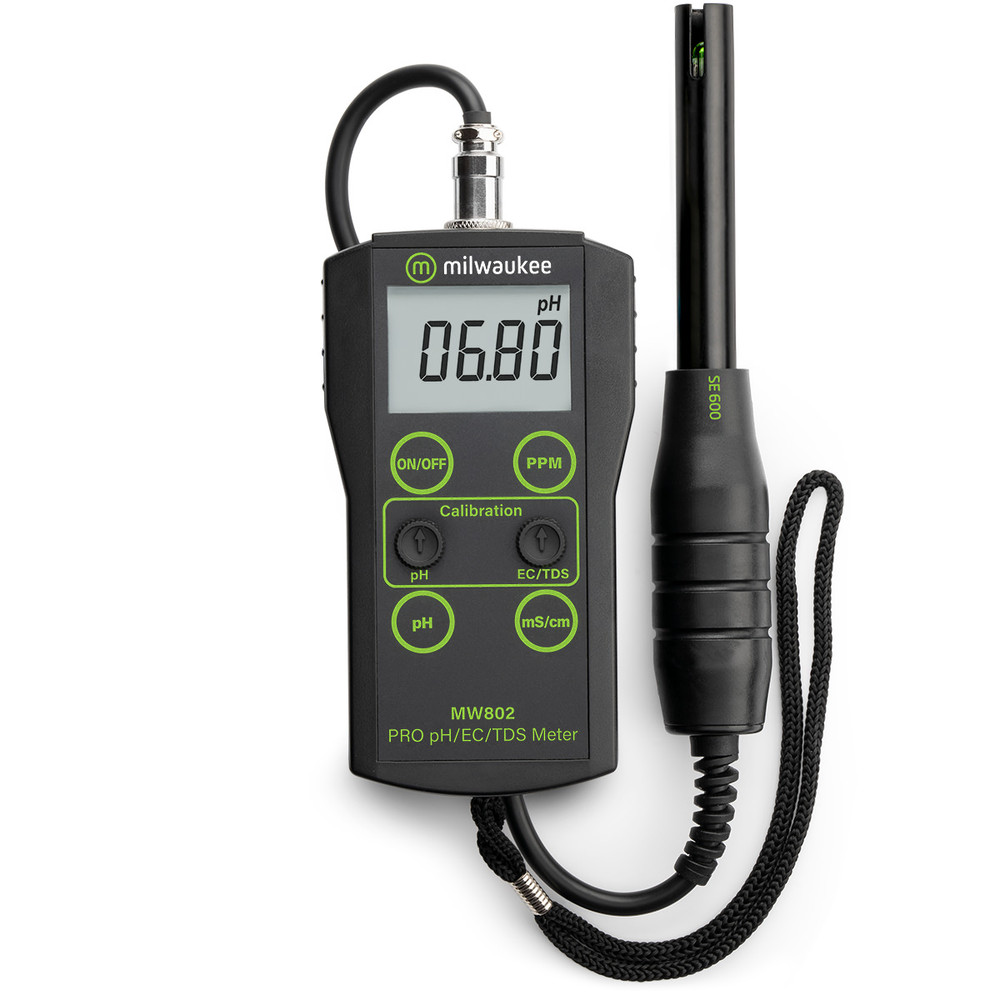

3 meters in 1! This meter allows you to measure pH, EC (conductivity) and TDS with just one instrument and one single probe!
The MW802, with a conductivity range that goes up to 6.00 mS/cm and the TDS up to 4000 ppm is ideal for testing in crop production. Soil and well water pH that is too acidic or alkaline can have an adverse effect on plant nutrient and water uptake and directly effect the efficiency of fertilizer, herbicides and pesticides. Soil Conductivity is checked before fertilizer application to pinpoint field needs and after fertilization to establish its effectiveness.
Supplied with the SE600 interchangeable probe to measure pH, Conductivity and TDS. The pH electrode utilizes a fiber junction to reduce contamination when measuring fertilizer solutions. Both meters calibrate manually in pH, Conductivity and TDS.
SPECIFICATIONS |
|
pH Range |
0.00 to 14.00 pH |
EC Range |
0.00 to 6.00 mS/cm |
TDS Range |
0 to 4000 ppm |
pH Resolution |
0.10 pH |
EC Resolution |
0.01 mS/cm |
TDS Resolution |
10 ppm |
pH Accuracy |
±0.20 pH |
EC/TDS Accuracy |
±2% Full Scale |
Calibration Solutions |
M10007 (pH 7.01) |
Conversion Factor |
0.5 |
Calibration |
manual, at 1 point |
Temperature Compensation |
automatic, from 0 to 50°C |
Probe |
SE600 combination pH/EC/TDS probe |
Environment |
0 to 50°C / 32 to 122°F; max RH 95% |
Battery Type / Battery Lyfe |
1 x 9V alkaline / 150 hours of use |
Auto-off |
after 8 minutes of non-use |
Dimensions |
185 x 82 x 45 mm |
Weight |
165 g (with battery) |
ACCESSORIES |
|
M10004B |
pH 4.01 buffer solution 20 ml |
M10007B |
pH 7.01 buffer solution 20 ml |
M10010B |
pH 10.01 buffer solution 20 ml |
M10031B |
1413 µS/cm calibration solution, |
M10032B |
1382 ppm calibration solution, |
M10442B |
1500 ppm calibration solution, |
MA9015 |
Electrode storage solution, 230 ml bottle |
SE600 |
pH/EC/TDS spare probe with 1 m cable |
MA6370 |
Protective hard shell case |
ORDERING INFORMATION |
|
MW802 is supplied complete with SE600 combination pH/EC/TDS probe, 20 mL sachet pH 7.01 buffer solution, 20 mL 1413 µS/cm sachet of calibration solution, 20 mL 1500 ppm sachet of calibration solution, 9V battery and instructions. |
