EC59 Pocket-size Conductivity / TDS / Temperature Meter with replaceable electrode
This new waterproof Pocket-size EC/TDS/Temp Meter include features such as a replaceable probe, temperature in °C or °F, automatic temperature compensation with adjustable ß, battery level indicator, stability indicator, automatic shut-off and automatic calibration all in a floating, waterproof casing.
EC59 shows on the dual-level LCD the EC (3999 µS/cm) or TDS (2000 ppm) value. It also displays the temperature from 0.0 to 60.0°C (or 32.0 to 140.0°F) on the secondary level at the same time.
SPECIFICATIONS |
|
EC Range |
3999 µS/cm |
TDS Range |
2000 ppm |
Temp Range |
0.0 to 60.0°C / 32.0 to 140.0°F |
EC Resolution |
1 µS/cm |
TDS Resolution |
1 ppm |
Temp Resolution |
0.1°C / 0.1°F |
EC Accuracy |
2% Full Scale |
TDS Accuracy |
2% Full Scale |
Temp Accuracy |
±0.5°C / ±1°F |
pH Typical EMC Deviation |
2% Full Scale |
TDS Typical EMC Deviation |
2% Full Scale |
Temp Typical EMC Deviation |
±0.5°C / ±1°F |
Calibration |
automatic, 1 point |
Temperature Compensation |
automatic, with ß=0.0 to 2.4%/°C |
Probe |
Mi59P (replaceable) |
Environment |
0 to 50°C / 32 to 122°F; max RH 100% |
Battery Type |
4 x 1.5V; IEC LR44, A76 (included) |
Battery Life |
approx. 100 hours of use |
Auto-off |
after 8 minutes of non-use |
Dimensions |
200 × dia 38 mm |
Weight |
100 g |

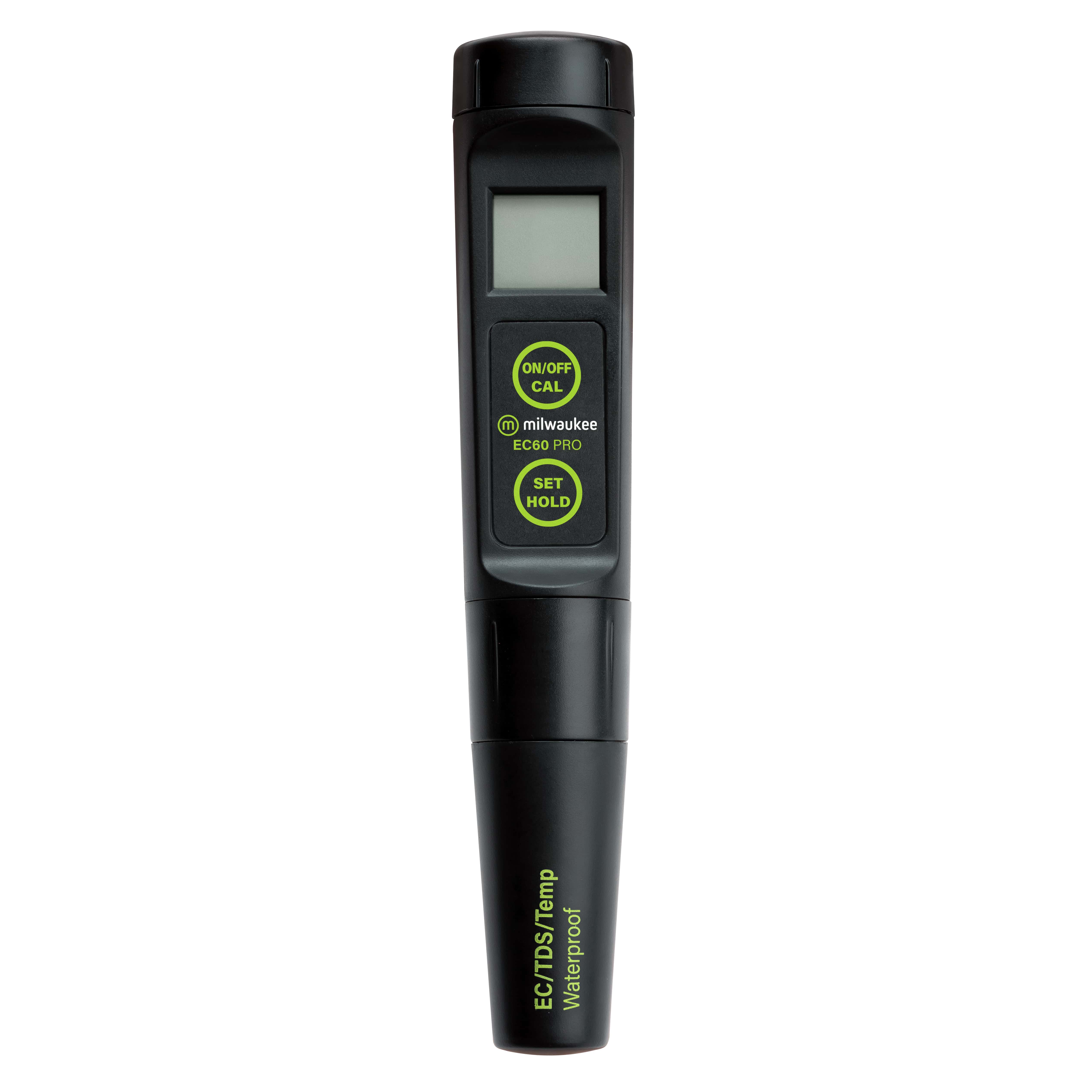

EC60 Pocket-size Conductivity / TDS / Temperature Meter with replaceable electrode
This new waterproof Pocket-size EC/TDS/Temp Meter include features such as a replaceable probe, temperature in °C or °F, automatic temperature compensation with adjustable ß, battery level indicator, stability indicator, automatic shut-off and automatic calibration all in a floating, waterproof casing.
EC59 shows on the dual-level LCD the EC (3999 µS/cm) or TDS (2000 ppm) value. It also displays the temperature from 0.0 to 60.0°C (or 32.0 to 140.0°F) on the secondary level at the same time.
SPECIFICATIONS |
|
EC Range |
3999 µS/cm |
TDS Range |
2000 ppm |
Temp Range |
0.0 to 60.0°C / 32.0 to 140.0°F |
EC Resolution |
1 µS/cm |
TDS Resolution |
1 ppm |
Temp Resolution |
0.1°C / 0.1°F |
EC Accuracy |
2% Full Scale |
TDS Accuracy |
2% Full Scale |
Temp Accuracy |
±0.5°C / ±1°F |
pH Typical EMC Deviation |
2% Full Scale |
TDS Typical EMC Deviation |
2% Full Scale |
Temp Typical EMC Deviation |
±0.5°C / ±1°F |
Calibration |
automatic, 1 point |
Temperature Compensation |
automatic, with ß=0.0 to 2.4%/°C |
Probe |
Mi59P (replaceable) |
Environment |
0 to 50°C / 32 to 122°F; max RH 100% |
Battery Type |
4 x 1.5V; IEC LR44, A76 (included) |
Battery Life |
approx. 100 hours of use |
Auto-off |
after 8 minutes of non-use |
Dimensions |
200 × dia 38 mm |
Weight |
100 g |

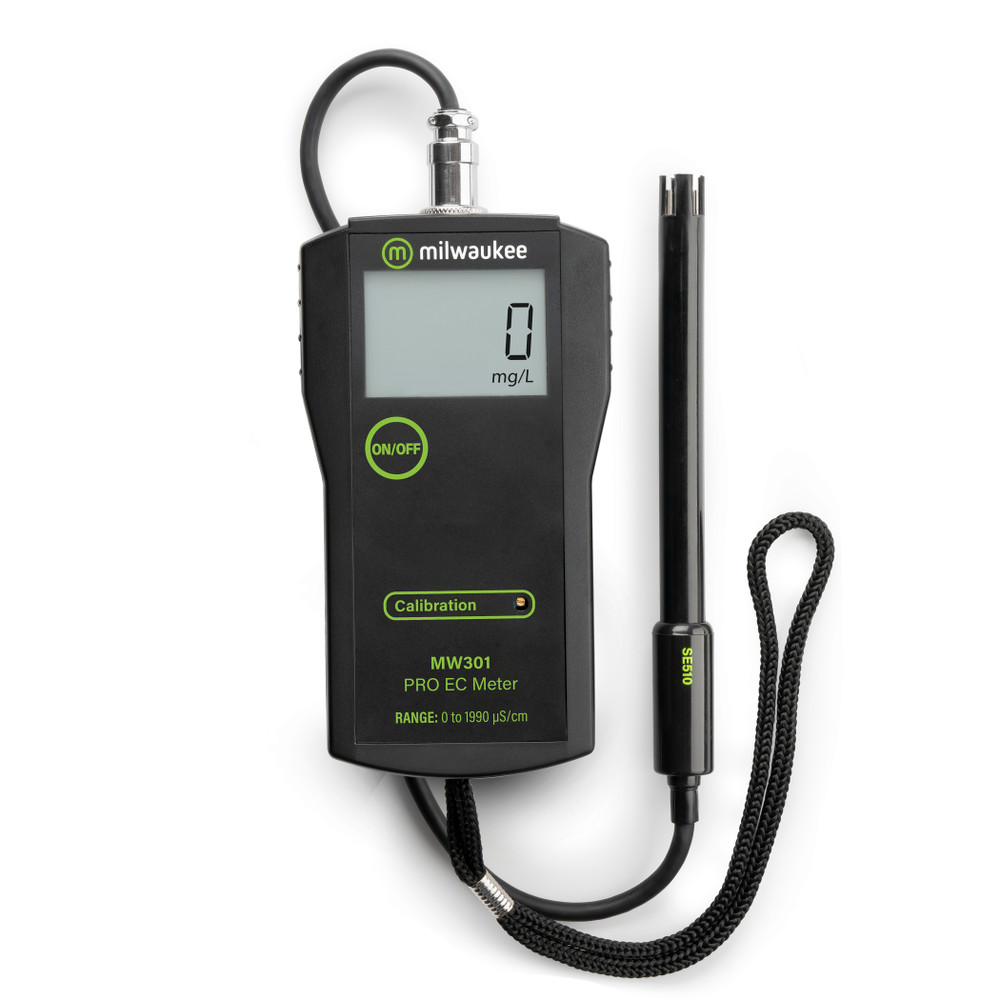

MW301 Standard Portable Conductivity Meter
MW301 is a Conductivity Portable Meter, with Automatic Temperature Compensation, and is ideal for the educational and agricultural markets. Soil conductivity is checked before fertilizer application to pinpoint field needs and after fertilization to establish its effectiveness. The EC testing provides all agricultural operation with a method to optimize chemical applications and minimize operational cost.
This instrument has been designed to meet the Grower's need for equipment suited to the aggressive environments found in agricultural and hydroponics applications.
The MW301 has a range of 0 to 1990 µS/cm with a 10 µS/cm resolution. The meter is supplied complete with Conductivity probe with 1 meter cable and calibration solution.
SPECIFICATIONS |
|
Range |
0 to 1990 µS/cm |
Resolution |
10 µS/cm |
Accuracy |
±2% Full Scale |
Calibration Solutions (included) |
1413 µS/cm (M10031B) |
Conductivity Probe |
SE510 (included) |
Temperature Compensation |
automatic, from 5 to 50°C |
Environment |
0 to 50°C / 32 to 122°F; max RH 95% |
Battery Type |
1 x 9V (included) |
Battery Life |
approx. 300 hours of continuous use |
Dimensions |
145 x 80 x 40 mm |
Weight |
220 g (with battery) |
ACCESSORIES |
|
SE510 |
Conductivity/TDS probe with DIN connector |
M10031B |
1413 µS/cm calibration |
MA9060 |
12880 µS/cm calibration solution, |
MA9061 |
1413 µS/cm calibration solution, |
MA6370 |
Protective hard shell case |
ORDERING INFORMATION |
|
MW301 is supplied complete with MA821D/1 EC probe, 20 mL 1413 µS/cm sachet of calibration solution, screwdriver for calibration, 9V battery and instructions. |

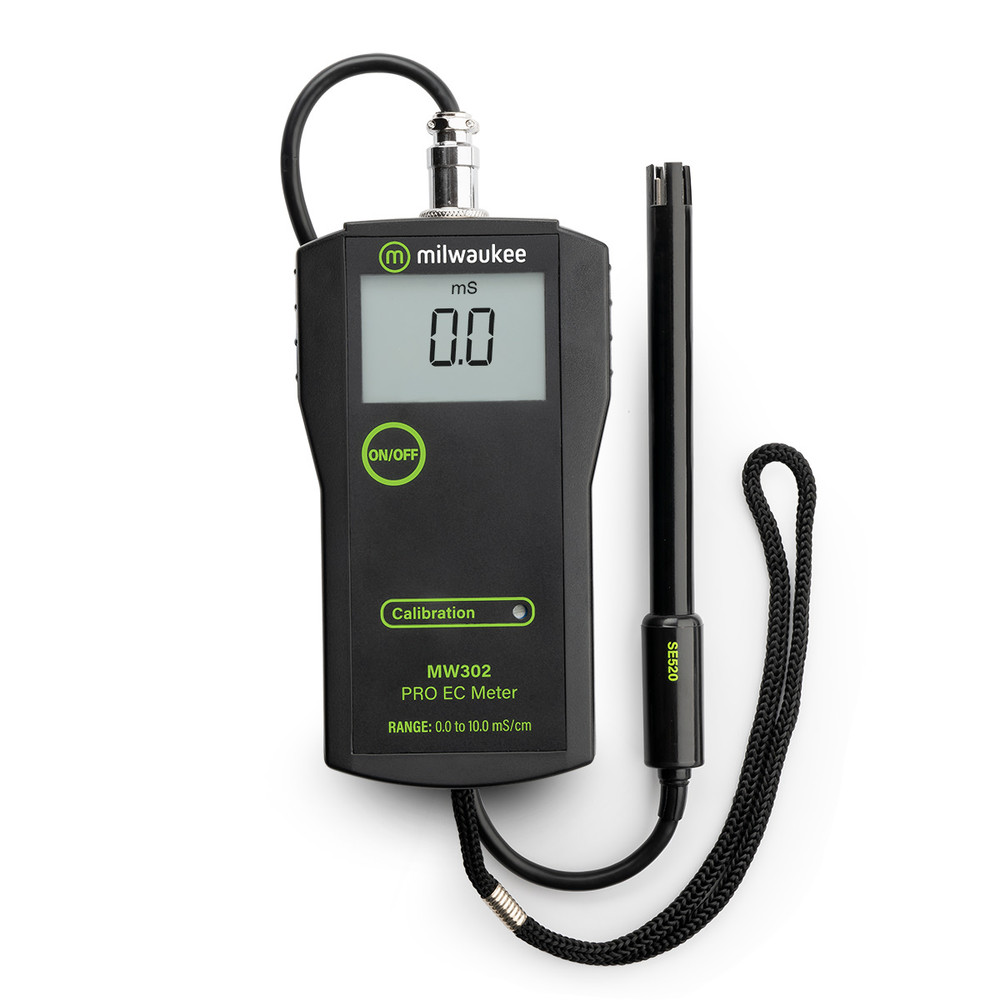

MW302 Standard Portable Conductivity Meter
MW302 is a Conductivity Portable Meter, with Automatic Temperature Compensation, and is ideal for the educational and agricultural markets. Soil conductivity is checked before fertilizer application to pinpoint field needs and after fertilization to establish its effectiveness. The EC testing provides all agricultural operation with a method to optimize chemical applications and minimize operational cost.
This instrument has been designed to meet the Grower's need for equipment suited to the aggressive environments found in agricultural and hydroponics applications.
The MW302 has a range of 0.0 to 10.0 mS/cm with a 0.1 mS/cm resolution. The meter is supplied complete with Conductivity probe with 1 meter cable and calibration solution.
SPECIFICATIONS |
|
Range |
0.0 to 10.0 mS/cm |
Resolution |
0.1 mS/cm |
Accuracy |
±2% Full Scale |
Calibration Solutions (included) |
1413 µS/cm (M10031B) |
Conductivity Probe |
SE520 (included) |
Temperature Compensation |
automatic, from 5 to 50°C |
Environment |
0 to 50°C / 32 to 122°F; max RH 95% |
Battery Type |
1 x 9V (included) |
Battery Life |
approx. 300 hours of continuous use |
Dimensions |
145 x 80 x 40 mm |
Weight |
220 g (with battery) |
ACCESSORIES |
|
SE520 |
Conductivity/TDS probe with DIN connector |
M10031B |
1413 µS/cm calibration |
M10032B |
1382 ppm (mg/l) calibration |
M10038B |
6.44 ppt (g/l) calibration solution, |
MA9060 |
12880 µS/cm calibration solution, |
MA9061 |
1413 µS/cm calibration solution, |
MA6370 |
Protective hard shell case |
ORDERING INFORMATION |
|
MW302 is supplied complete with SE520 EC probe, 20 mL 1413 µS/cm sachet of calibration solution, screwdriver for calibration, 9V battery and instructions. |

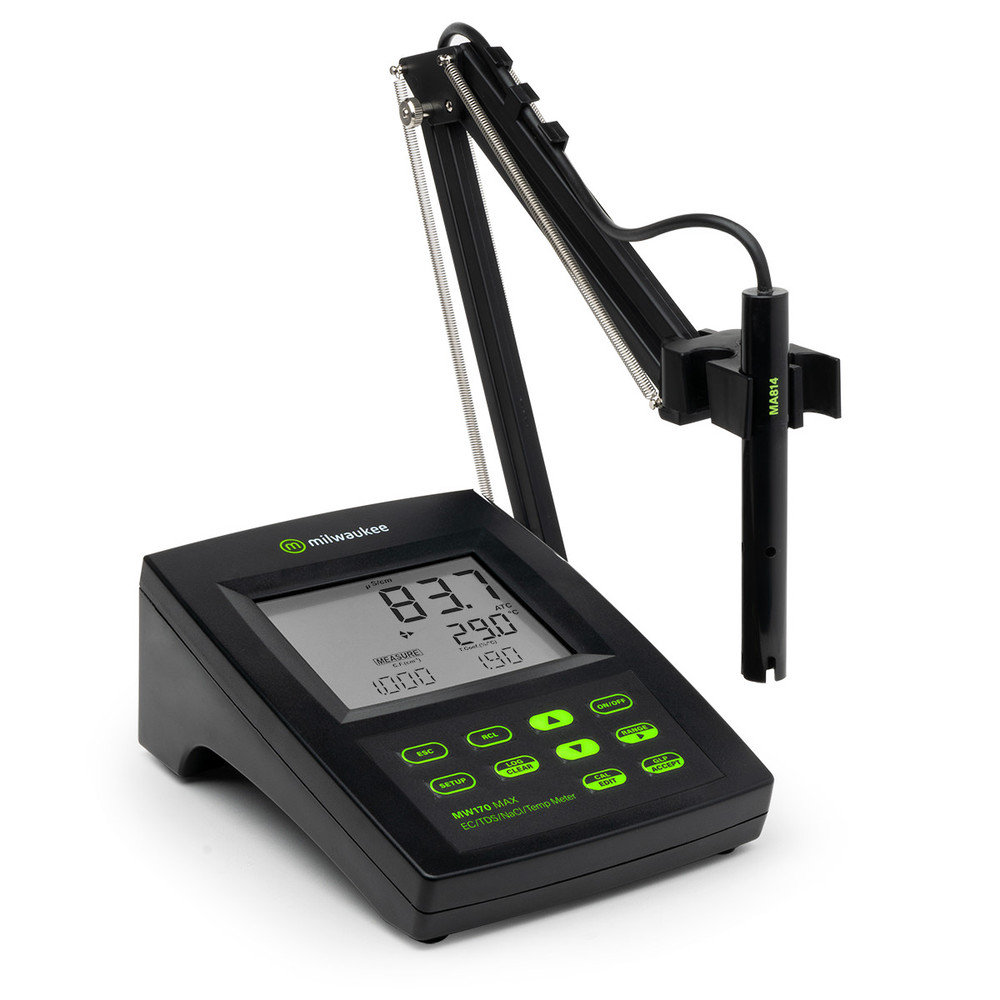

Mi170 Autoranging Conductivity / TDS / NaCl / Temperature Laboratory Bench Meter
Mi170 measures 4 different parameters - EC, TDS (Total Dissolved Solids), percentage of NaCl and temperature in a variety of ranges.
The auto-ranging feature for EC and TDS measurements automatically sets the resolution suitable to the tested sample. All measurements can be temperature compensated at 20 or 25°C and the compensation coefficient is selectable by the user.
The automatic temperature compensation can also be disabled for measuring the actual conductivity value. The stability indicator on the LCD ensures accuracy.
Conductivity readings are performed with the 4-ring probe supplied with the meter. The GLP feature allows users to store and recall data on system status.
PC compatible through an RS232 or USB port.
SPECIFICATIONS | |
EC Range | 0.00 to 29.99 µS/cm; 30.0 to 299.9 µS/cm; 300 to 2999 µS/cm; 3.00 to 29.99 mS/cm; 30.0 to 200.0 mS/cm; up to 500.0 mS/cm actual Conductivity* |
TDS Range | 0.00 to 14.99 mg/l (ppm); 15.0 to 149.9 mg/l (ppm); 150 to 1499 mg/l (ppm); 1.5 to 14.99 g/l (ppt); 15.0 to 100.0 g/l (ppt); up to 400.0 g/l actual TDS* (with 0.80 factor) |
NaCl Range | 0.0 to 400.0% |
Temp Range | -20.0 to 120.0°C / -4.0 to 248.0°F |
EC Resolution | 0.01 µS/cm; 0.1 µS/cm; 1.0 µS/cm; 0.01 mS/cm; 0.1 mS/cm |
TDS Resolution | 0.01 mg/l; 0.1 mg/l; 1.0 mg/l; 0.01 g/l; 0.1 g/l |
NaCl Resolution | 0.1% |
Temp Resolution | 0.1°C / 0.1 °F |
EC Accuracy | ±1% of reading ±(0.05 µS/cm ro 1 digit) |
TDS Accuracy | ±1% of reading ±(0.03 mg/l or 1 digit) |
NaCl Accuracy | ±1% of reading |
Temp Accuracy | ±0.4°C / ±0.8°F |
EC Calibration | 1 point slope calibration with 6 memorized solutions (84.0 µS/cm, 1413 µS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) |
NaCl Calibration | 1 point, with MA9066 calibration solution |
Temp Calibration | 2 points, 0 to 50°C / 32 to 12 °F |
Temp. Compensation | automatic or manual, from -20.0 to 120.0°C / -4.0 to 248.0°F |
Temp. Coefficient | selectable from 0.00 to 6.00%/°C (EC and TDS only) |
Probe | MA813D/1 4-ring probe with built-in temperature sensor (included) |
TDS Factor | 0.40 to 0.80 (default value is 0.50) |
Log on Demand | up to 50 samples on each range (EC, TDS, NaCl) |
GLP | last EC, NaCl calibration data |
PC Interface | RS232 / USB Opto-isolated |
Environment | 0 to 50°C / 32 to 122°F; max RH 95% |
Power supply | 12 VDC power adapter (included) |
Dimensions | 230 x 160 x 95 mm |
Weight | 0.9 kg |
